Lenovo ThinkCentre M70s Gen 5 Intel Core i7 13700 12U80080UM

Datasheet

Short Description

The Lenovo ThinkCentre M70s Gen 5 SFF Desktop (12U80080UM) is a compact, enterprise-grade business workstation engineered for professional environments where space is premium but performance cannot be compromised. Powered by the 13th Gen Intel Core i7-13700 processor with 16 cores and 24 threads, featuring 8GB of high-speed DDR5 memory, a 512GB PCIe Gen4 NVMe SSD with Opal 2.0 encryption, and Intel vPro Enterprise for advanced manageability, this small form factor desktop delivers exceptional performance, security, and IT-friendly features for corporate deployments .

---

Key Sections

Compact Small Form Factor Design

The ThinkCentre M70s Gen 5 features a space-saving Small Form Factor (SFF) chassis with a sleek Black finish, designed to fit seamlessly into any professional workspace . The compact footprint saves valuable desk space while maintaining full desktop performance and expandability . The tool-less chassis design simplifies maintenance and upgrades, making it IT-friendly for enterprise deployments .

Flagship 13th Gen Intel Core i7 Processing

At the heart of the M70s Gen 5 is the Intel Core i7-13700 processor from the 13th generation Raptor Lake family . It features 16 cores (8 Performance cores and 8 Efficient cores) and 24 threads, with P-cores boosting up to 5.2 GHz and a 30MB Intel Smart Cache . This flagship processor delivers exceptional multi-threaded performance for demanding business applications, data analysis, and multitasking. The integrated Intel UHD Graphics 770 provides crisp visuals for office productivity and multimedia content . The Intel Q670 chipset ensures enterprise-grade stability and reliability .

Intel vPro Enterprise for Advanced Manageability

The M70s Gen 5 includes Intel vPro Enterprise, providing IT administrators with comprehensive remote management capabilities, hardware-based security, and stability for business-critical deployments . The Intel vPro platform enables features like Intel Active Management Technology (AMT) and Intel Hardware Shield for advanced security .

Fast DDR5 Memory & PCIe Gen4 Storage

The M70s Gen 5 is equipped with 8GB of high-speed DDR5 5600MHz memory, providing excellent bandwidth for smooth multitasking and application responsiveness . The system features two DDR5 UDIMM slots with dual-channel support, allowing expansion up to 64GB . The 512GB PCIe 4.0x4 NVMe SSD with Opal 2.0 encryption delivers rapid boot times, quick application loading, and fast file access . For additional storage, the SFF chassis supports up to two storage drives, including a secondary 2.5" HDD or SSD .

Comprehensive Connectivity & Port Selection

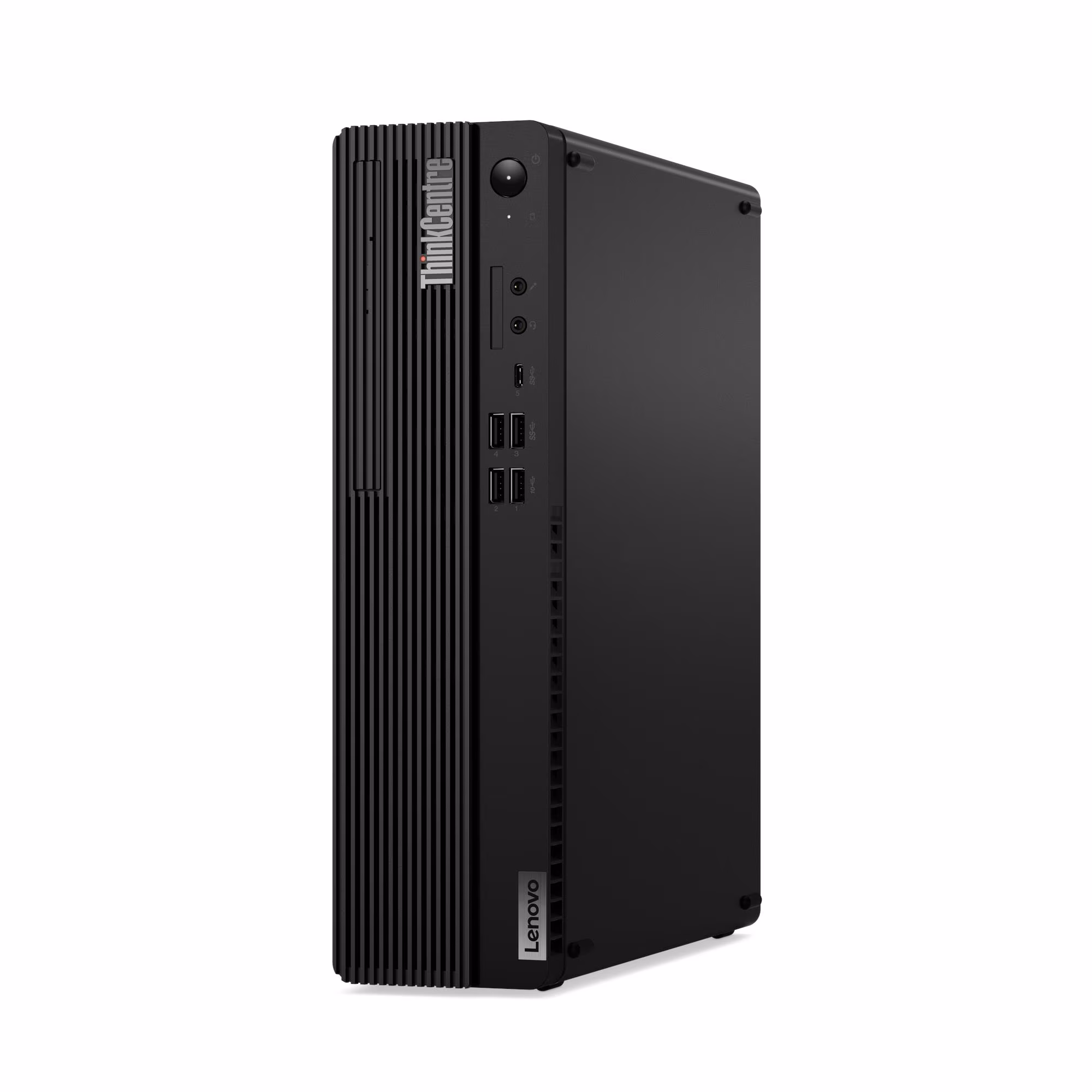

The M70s Gen 5 offers extensive connectivity options for versatile workspaces: Front Ports:

• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) with 15W charging
• 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x Headphone / microphone combo jack (3.5mm)
• 1x Microphone (3.5mm)

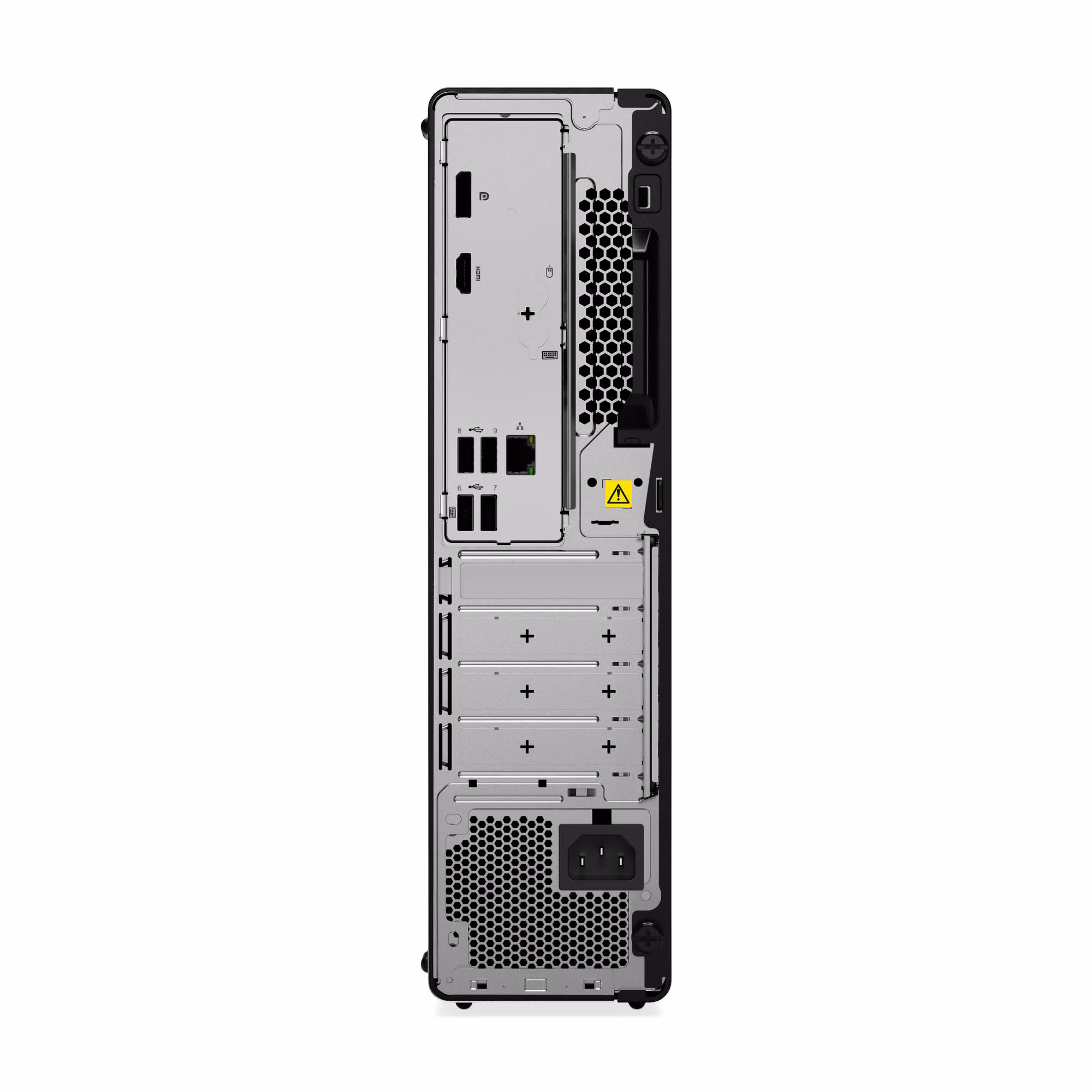

Rear Ports:

• 4x USB-A (Hi-Speed USB / USB 2.0)
• 1x HDMI 2.1 TMDS
• 1x DisplayPort 1.4a (HBR2, DSC)
• 1x Ethernet (RJ-45)

The Intel Wi-Fi 6E AX211 (2x2) and Bluetooth 5.3 provide fast, reliable wireless connectivity . The Gigabit Ethernet port ensures stable wired networking for demanding tasks . The USB-C port with 15W charging powers compatible devices directly from the desktop .

Enterprise-Grade Security & Manageability

Work with peace of mind using comprehensive security features including discrete TPM 2.0 for data encryption . The Kensington lock slot and padlock loop provide physical security protection . The chassis intrusion switch adds additional protection against unauthorized access . The ThinkCentre M70s Gen 5 includes the USB Traditional Keyboard and Calliope Mouse, providing a complete out-of-the-box experience . The 3-year warranty provides long-term reliability for enterprise deployments .

---

Core Features

• The 13th Gen Intel Core i7-13700 processor with 16 cores and 24 threads delivers exceptional performance for demanding business applications.
• Intel vPro Enterprise provides advanced remote manageability and hardware-based security.
• 8GB DDR5 5600MHz memory with expansion up to 64GB guarantees fluid multitasking.
• High-speed 512GB PCIe 4.0 NVMe SSD with Opal 2.0 encryption enables rapid boot times and fast file access.
• Extensive connectivity with USB-C (15W charging), HDMI 2.1, DisplayPort 1.4, and Gigabit Ethernet.
• Intel Wi-Fi 6E AX211 and Bluetooth 5.3 deliver fast, reliable wireless connectivity.
• Compact SFF design with tool-less chassis simplifies maintenance and upgrades.

---

Performance & Utility Features

• The Intel Core i7-13700 utilizes advanced hybrid architecture with 8 P-cores and 8 E-cores for optimal power efficiency and computing speed .
• Intel UHD Graphics 770 provides crisp visuals for office productivity, presentations, and multimedia content .
• The Intel Q670 chipset ensures enterprise-grade stability and reliability .
• Versatile port selection including HDMI 2.1, DisplayPort 1.4, USB-C, and Ethernet ensures seamless connectivity to displays and peripherals .
• The USB-C port with 15W charging powers compatible devices directly from the desktop .
• USB Traditional Keyboard and Calliope Mouse included for a complete out-of-the-box experience .
• The 3-year warranty provides long-term reliability for enterprise deployments .

---

Design, Build & Sustainability

• The compact SFF design with sleek Black finish fits seamlessly into any professional workspace .
• Tool-less chassis design simplifies maintenance and upgrades for IT administrators .
• ENERGY STAR certified, EPEAT Gold registered, and TCO Certified for environmental sustainability .
• Constructed with recycled materials including 95% PCC (Post-Consumer Recycled Content) in the chassis .
• The 3-year warranty provides long-term reliability for enterprise deployments .

---

Technical Specifications Summary

• Model / Part Number: Lenovo ThinkCentre M70s Gen 5 (12U80080UM)
• Processor: Intel Core i7-13700 (16 Cores: 8P + 8E, Up to 5.2 GHz Max Turbo, 30MB Intel Smart Cache)
• vPro: Intel vPro Enterprise (Intel Active Management Technology)
• Graphics: Integrated Intel UHD Graphics 770
• Chipset: Intel Q670
• Memory: 8 GB DDR5 5600MHz RAM (Upgradable to 64GB, 2 Slots)
• Storage: 512 GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Storage Support: Up to 2 drives (1x M.2 SSD + 1x 2.5" HDD/SSD)
• Operating System: No OS (FreeDOS)
• Optical Drive: None (No ODD)
• Audio: High Definition Audio, Realtek ALC623-CG, 1W Internal Speaker
• Wireless Connectivity: Intel Wi-Fi 6E AX211 (2x2) and Bluetooth 5.3
• Ethernet: Gigabit Ethernet (Intel I219-LM)
• Power Supply: 260W 85% Efficiency
• Form Factor: Small Form Factor (SFF)
• Dimensions (WxDxH): 92.5 x 297.7 x 339.5 mm
• Weight: Around 5.5 kg
• Color: Black
• Accessories: USB Traditional Keyboard, USB Calliope Mouse
• Security: Discrete TPM 2.0, Kensington Lock Slot, Padlock Loop, Chassis Intrusion Switch
• Warranty: 3 Year Carry-in
