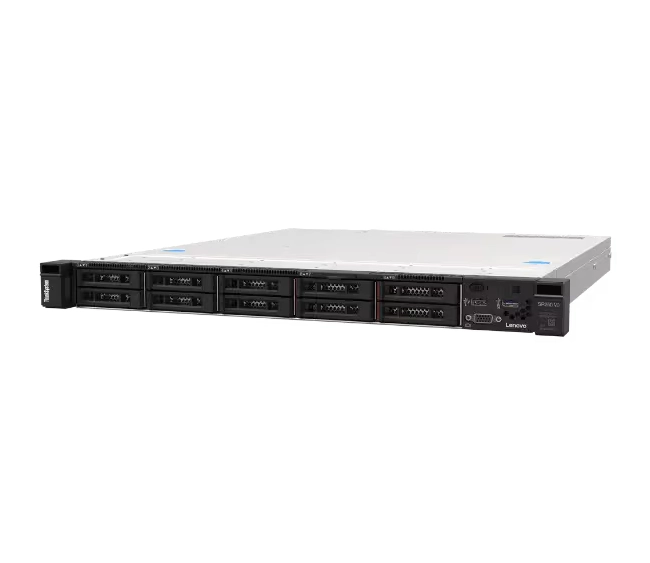

The Lenovo ThinkSystem SR250 V3 Rack Server is a
compact 1U rack server engineered for high efficiency and reliability in limited-space environments. Powered by the latest
Intel Xeon E-2400 processors, DDR5 ECC memory, and hot-swap Titanium power supplies, the SR250 V3 provides enterprise-class performance in a space-saving design.
With
XClarity Controller 2 Platinum and support for up to
8x 2.5" hot-swap drives, it is ideal for virtualization, file serving, and SMB workloads.
Lenovo SR250 V3 (Part Number: 7DCLA00LEA)
Processor
- Intel Xeon E-2434
- 4 cores / 8 threads
- Base clock: 3.4 GHz
- Cache: 8 MB Intel Smart Cache
- TDP: 55W
Memory
- Installed: 1x16GB DDR5 ECC UDIMM
- Speed: 4400 MT/s
- Slots: 4 DIMM slots
- Maximum capacity: 128GB
Storage
- 8x 2.5" Hot-Swap drive bays
- Software RAID (SW RAID with Intel VROC)
- RAID Levels: 0, 1, 10 (basic software RAID)
RAID / Controller
- Software RAID only (no dedicated RAID card installed)
Networking
- Onboard Gigabit Ethernet
- Optional PCIe NICs for 10GbE or faster connectivity
Expansion
- PCIe Gen4/Gen5 slots for NICs, HBAs, or accelerators
Power Supply
- Hot-Swap 800W Titanium-rated PSU (96% efficiency)
Management
- Lenovo XClarity Controller 2 (XCC2) Platinum
- Advanced monitoring, diagnostics, and remote management
Other Features
- Rack rails included
- Compact 1U rack-mountable form factor
Warranty
Lenovo SR250 V3 (Part Number: 7DCLA00NEA)
Processor
- Intel Xeon E-2436
- 6 cores / 12 threads
- Base clock: 2.9 GHz
- Cache: 12 MB Intel Smart Cache
- TDP: 65W
Memory
- Installed: 1x32GB DDR5 ECC UDIMM
- Speed: 4400 MT/s
- Expandable up to 128GB across 4 DIMM slots
Storage
- 8x 2.5" Hot-Swap bays
- Enterprise-class RAID support
RAID / Controller
- Lenovo ThinkSystem 5350-8i Internal RAID Controller
- Interface: 12Gbps SAS/SATA
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
- Supports flash-backed cache for data protection
Networking
- Onboard Ethernet
- PCIe NIC expansion supported
Expansion
Power Supply
- 800W Hot-Swap Titanium PSU (96% efficiency)
Management
- Lenovo XClarity Controller 2 (XCC2) Platinum
Other Features
- Rack rails included
- 1U compact rack design
Warranty
Lenovo SR250 V3 (Part Number: 7DCLA00TEA)
Processor
- Intel Xeon E-2468
- 8 cores / 16 threads
- Base clock: 2.6 GHz
- Cache: 16 MB Intel Smart Cache
- TDP: 65W
Memory
- Installed: 1x32GB DDR5 ECC UDIMM
- Speed: 4400 MT/s
- Expandable to 128GB (4 DIMM slots)
Storage
- 8x 2.5" Hot-Swap drive bays
RAID / Controller
- Lenovo ThinkSystem 5350-8i Internal RAID Controller
- 12Gbps SAS/SATA
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
Networking
- Standard onboard Ethernet
- Optional advanced networking adapters
Expansion
Power Supply
- 800W Titanium-rated PSU, hot-swap
Management
- Lenovo XClarity Controller 2 (XCC2) Platinum
Other Features
- Rack rails included for deployment
- Slim 1U form factor for dense rack environments
Warranty
Key Features
- Rack-optimized 1U design for space-efficient deployments.
- Intel Xeon E-2400 processors with 4, 6, and 8 core options.
- DDR5 ECC memory up to 128GB across 4 DIMM slots.
- Flexible storage: 8x 2.5" hot-swap bays.
- Choice of SW RAID or enterprise-grade 5350-8i RAID controller.
- Titanium-rated 800W PSU for maximum efficiency.
- XClarity Controller 2 Platinum for advanced remote management.
- Rails included for easy rack installation.
Meta Description
Lenovo ThinkSystem SR250 V3 Rack Server with Xeon E-2434, E-2436, and E-2468 CPUs, DDR5 ECC memory up to 128GB, 8x 2.5" hot-swap drives, SW RAID or 5350-8i RAID, 800W Titanium PSU, and XCC2 Platinum management. Compact 1U enterprise-class server with rails included.
