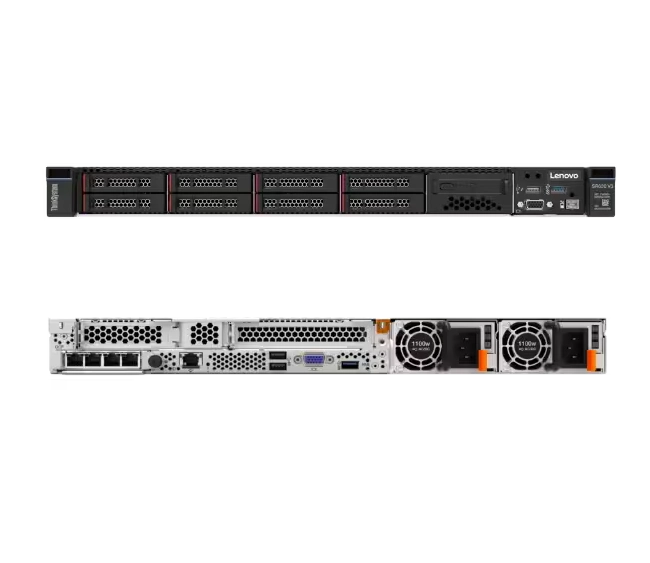

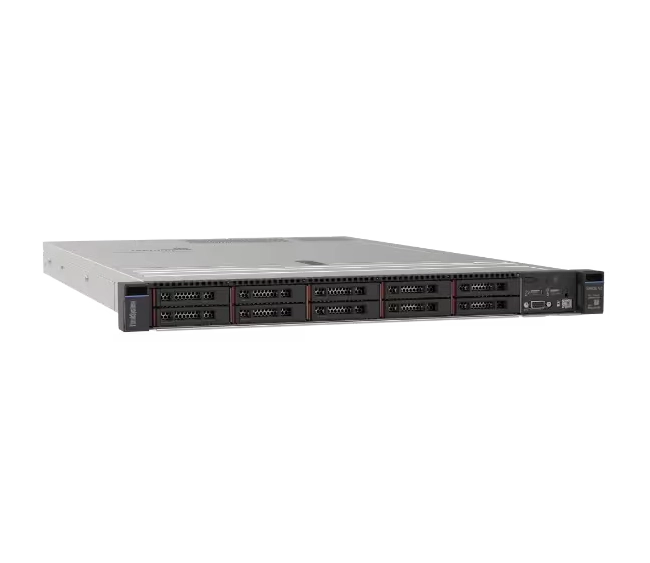

The Lenovo ThinkSystem SR630 V3 Rack Server delivers
powerful compute density in a compact 1U form factor, making it ideal for businesses that need scalability, performance, and efficiency. With support for up to
2 sockets of Xeon Scalable CPUs (single-socket configs shown here), DDR5 ECC memory, and enterprise-class RAID options, it is widely used in data centers for virtualization, cloud hosting, databases, and enterprise applications.
Lenovo SR630 V3 (Part Number: 7D73A047EA)
Processor
- Intel Xeon Silver 4509Y
- 8 cores / 16 threads
- Base clock: 2.6 GHz
- Cache: 22.5 MB Intel Smart Cache
- TDP: 125W
Memory
- Installed: 1x32GB DDR5 RDIMM (ECC, Registered)
- Speed: 4800 MHz
- Rank: 1Rx4
- Expandable: Multiple TB depending on configuration (supports 32 DIMM slots in 2-socket models)
Storage
- 8x SAS/SATA drive bays
- RAID Controller: Lenovo 9350-8i Internal (12Gbps SAS/SATA)
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
Cooling
Power Supply
- 1x 1100W Titanium-rated PSU (96% efficiency, hot-swap)
Management
- Lenovo XClarity Controller 2 (XCC2) Platinum
- Advanced system monitoring, analytics, and remote management
Other Features
- Toolless V2 rails for simplified rack installation
- Enterprise-class reliability and efficiency
Warranty
Lenovo SR630 V3 (Part Number: 7D73A03VEA)
Processor
- Intel Xeon Silver 4510
- 12 cores / 24 threads
- Base clock: 2.4 GHz
- Cache: 30 MB Intel Smart Cache
- TDP: 150W
Memory
- Installed: 1x32GB DDR5 RDIMM
- Speed: 4800 MHz
- Rank: 1Rx4
- Expandable to multi-terabyte configurations
Storage
- 8x SAS/SATA drive bays
- RAID Controller: Lenovo 9350-8i Internal (12Gbps SAS/SATA)
- RAID support for advanced redundancy and performance
Cooling
Power Supply
- 1x 1100W Titanium PSU (hot-swap, 96% efficiency)
Management
- XClarity Controller 2 Platinum
Other Features
- Toolless V2 rails included
- Optimized for virtualization and compute-heavy tasks
Warranty
Lenovo SR630 V3 (Part Number: 7D73A06LEA)
Processor
- Intel Xeon Silver 4514Y
- 16 cores / 32 threads
- Base clock: 2.0 GHz
- Cache: 30 MB Intel Smart Cache
- TDP: 150W
Memory
- Installed: 1x32GB DDR5 RDIMM
- Speed: 5600 MHz (higher bandwidth than Silver 4509Y/4510 configs)
- Rank: 1Rx4
- Maximum scalable capacity: Multi-terabyte with full DIMM population
Storage
- 8x SAS/SATA drive bays
- RAID Controller: Lenovo 9350-8i with 2GB cache module
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
- Enhanced write-back cache for improved performance and data integrity
Cooling
Power Supply
- 1x 1100W Titanium hot-swap PSU
Management
- XClarity Controller 2 (XCC2) Platinum
Other Features
- Toolless V2 rails for easy data center integration
Warranty
Lenovo SR630 V3 (Part Number: 7D73A046EA)
Processor
- Intel Xeon Gold 6526Y
- 16 cores / 32 threads
- Base clock: 2.8 GHz
- Cache: 37.5 MB Intel Smart Cache
- TDP: 195W (higher power for greater compute performance)
Memory
- Installed: 1x32GB DDR5 RDIMM
- Speed: 5600 MHz
- Rank: 1Rx4
- Expandable to very large capacities for memory-intensive workloads
Storage
- 8x SAS/SATA drive bays
- RAID Controller: Lenovo 9350-8i Internal (12Gbps SAS/SATA)
- Advanced RAID redundancy supported
Cooling
Power Supply
- 1x 1100W Titanium-rated PSU (hot-swap, 96% efficiency)
Management
- XClarity Controller 2 Platinum
Other Features
- Toolless V2 rails included
- Optimized for high-performance enterprise workloads like virtualization, AI, and databases
Warranty
Key Features
- 1U enterprise rack server with Intel Xeon Silver & Gold Scalable CPUs.
- Core options from 8 to 16, with up to 32 threads per CPU.
- DDR5 RDIMM ECC memory up to 5600 MHz, scalable to multi-terabyte configurations.
- 8x SAS/SATA hot-swap storage bays with Lenovo 9350-8i RAID.
- Titanium-rated 1100W PSU with high efficiency and reliability.
- Six performance fans for optimized cooling in dense rack deployments.
- XClarity Controller 2 Platinum for advanced management and monitoring.
- Toolless V2 rails for simplified rack mounting.
Meta Description
Lenovo ThinkSystem SR630 V3 Rack Server with Xeon Silver 4509Y, 4510, 4514Y, and Xeon Gold 6526Y CPUs, DDR5 ECC memory up to 5600 MHz, 8 SAS/SATA bays, 9350-8i RAID, 1100W Titanium PSU, and XCC2 Platinum. High-performance 1U enterprise servers for data centers.
