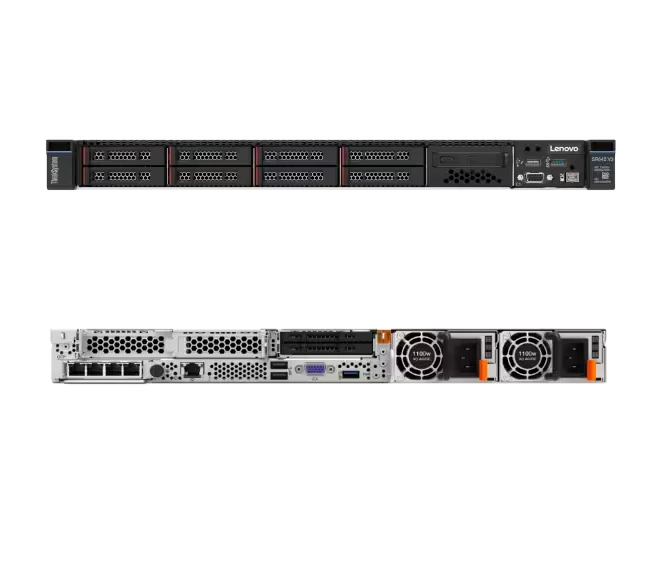

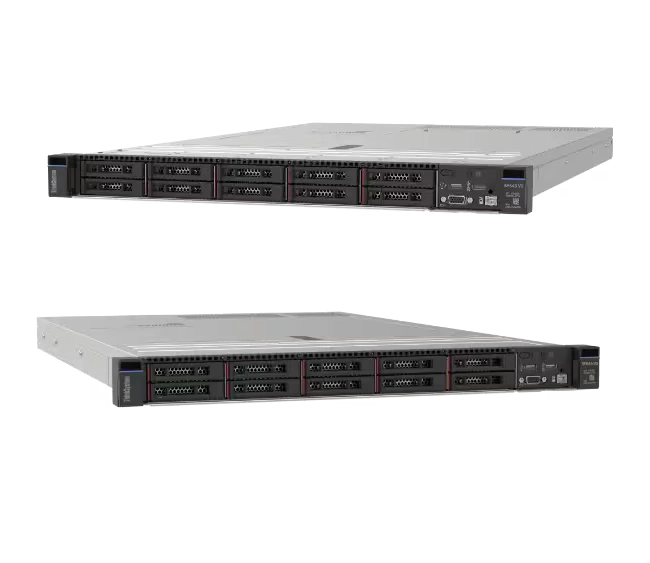

The Lenovo ThinkSystem SR645 V3 Rack Server powered by the AMD EPYC 9124 is a next-generation dual-socket 1U rack server built for performance, scalability, and efficiency. With support for the latest DDR5 memory, enterprise-class storage, and robust power efficiency, this server is engineered to handle demanding workloads such as virtualization, databases, and cloud applications while delivering exceptional compute density.
Model Number: 7D9CA014EA
- Processor: AMD EPYC 9124
- 16 Cores, 32 Threads
- Base Frequency: 3.0 GHz
- L3 Cache: 64 MB
- TDP: 200W
Memory
- Installed: 32GB DDR5 RDIMM
- Type: 2Rx8 DDR5 RDIMM
- Speed: 4800MHz
- Expandable with additional DIMMs
Storage & RAID
- Drive Bays: 8x 2.5" SAS/SATA (hot-swap capable)
- RAID Controller: ThinkSystem 9350-8i (supports RAID levels for data protection and performance optimization)
Power & Cooling
- PSU: 1x 1100W Titanium efficiency power supply (high-efficiency for energy savings)
- Cooling: 6x Performance Fans optimized for rack environments
System Management
- Lenovo XClarity Controller 2 Platinum (XCC2) for advanced system monitoring, firmware updates, and remote management
Form Factor & Rails
- 1U Rack Server
- Toolless V2 Rails included for easy installation and serviceability
Key Features
- High-performance AMD EPYC 9124 CPU with 16 cores for compute-intensive tasks
- DDR5 4800MHz memory support for improved bandwidth and efficiency
- Enterprise-grade RAID via 9350-8i for data reliability
- Titanium-rated PSU ensures maximum power efficiency
- Advanced system management with XCC2 Platinum
- Compact 1U design optimized for dense data center environments
Meta Description
Lenovo ThinkSystem SR645 V3 Rack Server with AMD EPYC 9124 (16C, 3.0GHz, 64MB Cache, 200W) server featuring 32GB DDR5 4800MHz RDIMM, 8 SAS/SATA bays, RAID 9350-8i, 1100W Titanium PSU, XCC2 Platinum, and 1U rack form factor.
