The

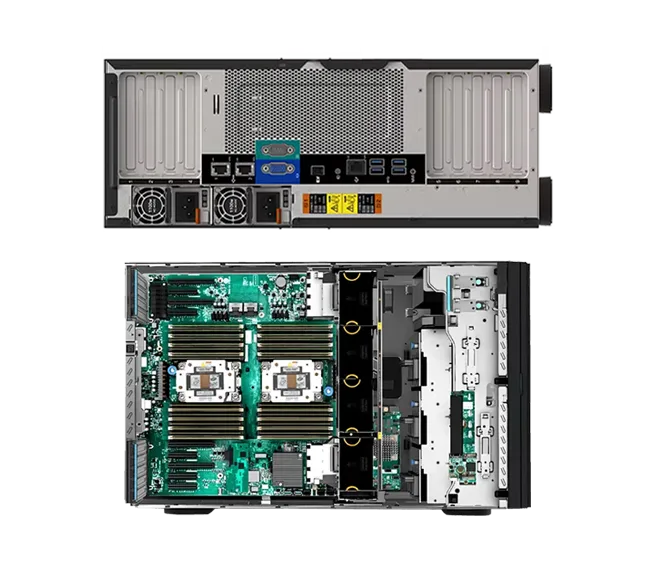

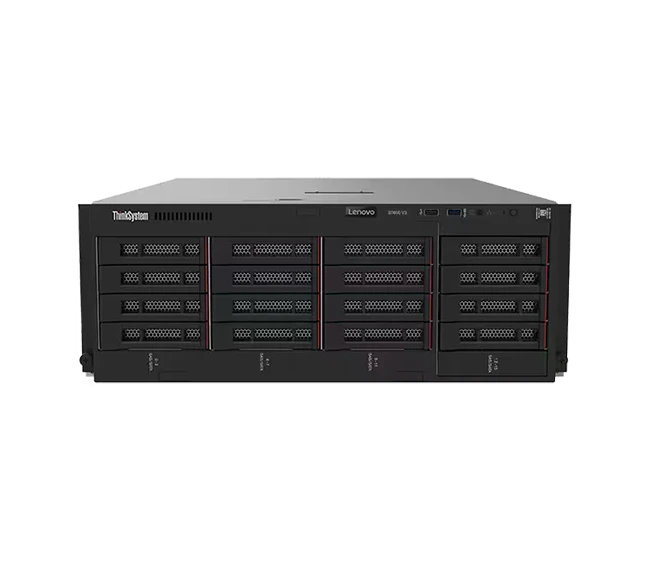

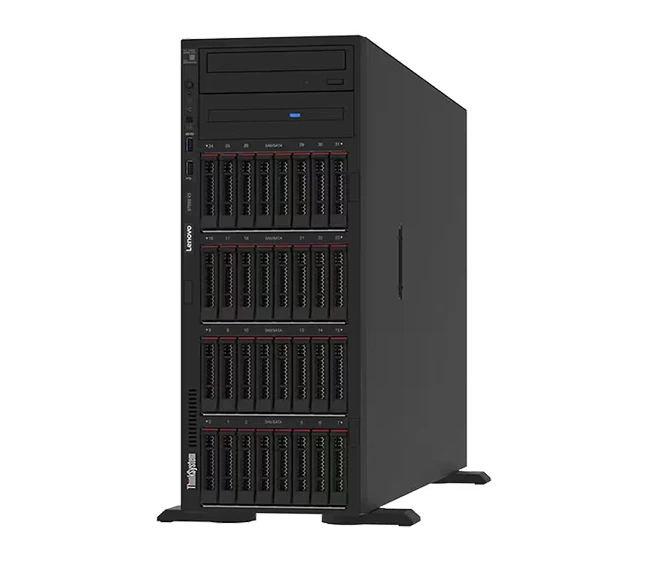

Lenovo ThinkSystem ST650 V3 Tower Server is a versatile, enterprise-grade tower server built for demanding workloads. Supporting
Intel Xeon Scalable 4th Gen Silver CPUs, high-speed DDR5 memory, enterprise RAID, and Titanium-rated power supplies, it combines performance with efficiency. With support for
SAS/SATA drives and advanced system management (XClarity Controller Platinum), the ST650 V3 is ideal for mid to large enterprises requiring scalability, reliability, and powerful compute resources.
Lenovo ST650 V3 (Part Number: 7D7AA02DEA)
Processor
- Intel Xeon Silver 4509Y
- 8 cores / 16 threads
- Base clock: 2.6 GHz
- Cache: 22.5 MB Intel Smart Cache
- TDP: 125W
- Intel 4th Gen Xeon Scalable architecture
Memory
- Installed: 1x32GB DDR5 RDIMM (Registered DIMM, ECC)
- Speed: 4800 MHz
- Rank: 1Rx4
- Maximum Capacity: Supports multiple TB (scalable with RDIMMs, depending on configuration)
Storage
- Drive Bays: Supports up to 8x SAS/SATA drives
- RAID Controller: Lenovo ThinkSystem 9350-8i
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
- Interface: 12Gbps SAS / SATA
Expansion & Slots
- Multiple PCIe Gen5 slots for networking, accelerators, or storage cards
Networking
- Onboard Ethernet standard
- Optional higher-bandwidth NICs supported
Power Supply
- 1x 1100W Titanium-rated PSU (96% efficiency)
- Hot-swap capable
Cooling
Management
- Lenovo XClarity Controller (XCC) Platinum license for advanced system monitoring, diagnostics, and remote control
Warranty
Lenovo ST650 V3 (Part Number: 7D7AA02WEA)
Processor
- Intel Xeon Silver 4510
- 12 cores / 24 threads
- Base clock: 2.4 GHz
- Cache: 30 MB Intel Smart Cache
- TDP: 150W
- Xeon Scalable, optimized for virtualization and multi-threaded workloads
Memory
- Installed: 1x32GB DDR5 RDIMM (ECC, Registered)
- Speed: 4800 MHz
- Rank: 1Rx4
- Maximum capacity scalable with additional RDIMMs
Storage
- Supports up to 8x SAS/SATA drives
- RAID Controller: Lenovo 9350-8i (12Gbps SAS/SATA)
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
Expansion & Slots
- Multiple PCIe Gen5 slots available
Networking
- Onboard Gigabit Ethernet, upgradeable to 10/25GbE NICs
Power Supply
- 1x 1100W Titanium PSU (96% efficiency)
- Hot-swap design
Cooling
Management
- XClarity Controller Platinum for full enterprise management
Warranty
Lenovo ST650 V3 (Part Number: 7D7A100CEA)
Processor
- Intel Xeon Silver 4514Y
- 16 cores / 32 threads
- Base clock: 2.0 GHz
- Cache: 30 MB Intel Smart Cache
- TDP: 150W
- Balanced for scalability and higher parallel performance
Memory
- Installed: 1x32GB DDR5 RDIMM (ECC, Registered)
- Speed: 5600 MHz (higher memory bandwidth vs. other configs)
- Rank: 1Rx4
- Expandable to multiple TB (depending on RDIMM/LRDIMM config)
Storage
- Up to 8x SAS/SATA drives supported
- RAID Controller: Lenovo 9350-8i (12Gbps SAS/SATA)
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
Expansion & Slots
- PCIe Gen5 slots for GPUs, storage, or network acceleration
Networking
- Integrated Ethernet
- Optional PCIe NICs for advanced networking
Power Supply
- 1x 1100W Titanium PSU (96% efficiency, hot-swap)
Cooling
Management
- Lenovo XClarity Controller 2 (XCC2) Platinum
- Advanced enterprise-grade monitoring, reporting, and remote management
Warranty
Key Features
- Intel Xeon Silver Scalable CPUs (8, 12, or 16 cores) for versatile workloads.
- DDR5 RDIMM ECC memory, up to 5600 MHz in advanced configuration.
- Enterprise-class RAID (9350-8i) with full redundancy support.
- Supports up to 8x SAS/SATA drives for scalable storage.
- 1100W Titanium-rated PSU for high efficiency and reliability.
- XClarity Controller (XCC/XCC2) Platinum for enterprise management.
- Optimized for virtualization, databases, and high-performance workloads.
Meta Description
Lenovo ThinkSystem ST650 V3 tower servers with Intel Xeon Silver 4509Y, 4510, and 4514Y processors, DDR5 ECC RDIMM up to 5600 MHz, RAID 9350-8i, 1100W Titanium PSU, and XClarity Platinum. Enterprise-class scalability, efficiency, and performance.
