The

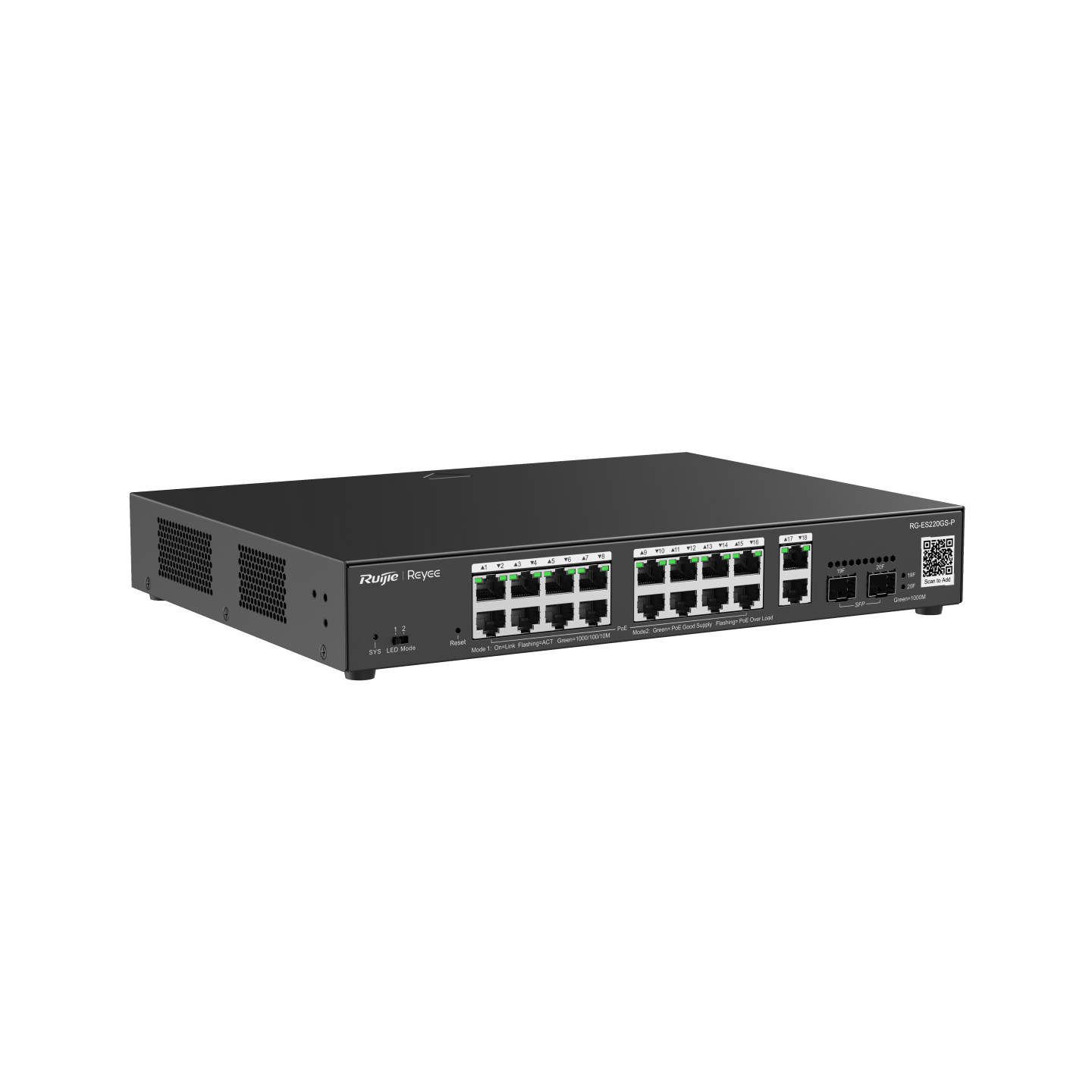

RG-ES220GS-P 20-Port Gigabit Smart Cloud Managed PoE Switch is a business-class access switch engineered for SMBs, enterprise branches, and IP surveillance deployments that require centralized cloud management and reliable PoE power delivery. With 16 PoE/PoE+ Gigabit ports and a total 200W PoE budget, the RG-ES220GS-P efficiently powers IP cameras, wireless access points, and VoIP phones while providing stable Gigabit connectivity and intelligent network management.
Product Overview
The RG-ES220GS-P offers cloud-managed capabilities for remote configuration, monitoring, and troubleshooting. Its intelligent PoE allocation ensures safe and efficient power delivery, while Layer 2 smart features like VLANs, QoS, and port isolation provide reliable traffic control and network security. Housed in a compact steel chassis, this switch is ideal for offices, retail spaces, and surveillance setups.
Hardware Specifications
- Switch Type: Smart cloud managed Gigabit PoE switch
- Total Ports: 20
- PoE Access Ports: 16 × 10/100/1000 Mbps RJ45 (PoE/PoE+)
- Non-PoE Ports: 4 × 10/100/1000 Mbps RJ45
- Uplink Ports: 2 × Gigabit SFP
- PoE Standards: IEEE 802.3af / 802.3at
- Maximum PoE Output per Port: 30W
- Total PoE Budget: 200W
- PoE Management: Intelligent allocation and overload protection
Switching & Performance
- Switching Capacity: Non-blocking architecture
- Forwarding Rate: Line-rate forwarding
- MAC Address Table: Enterprise-grade device support
- Jumbo Frames: Supported for optimized performance
- Flow Control: IEEE 802.3x
Layer 2 & Network Features
- VLAN Support: IEEE 802.1Q VLAN, port-based VLAN
- QoS: Priority-based traffic scheduling for voice and video
- Link Aggregation: Static LAG support
- Loop Protection: Automatic loop detection
- Storm Control: Broadcast and multicast suppression
- Port Isolation: Security for cameras, guest networks, and IoT devices
Cloud Management
- Management Platform: Ruijie Reyee Cloud
- Remote Access: Full configuration, monitoring, and firmware updates
- Monitoring: Real-time port status and PoE consumption
- Alerts: Fault and performance notifications
- Deployment: Zero-touch cloud onboarding
Physical & Environmental Specifications
- Form Factor: Desktop
- Chassis: Steel enclosure
- Cooling: Active cooling with smart fan control
- Power Supply: Internal AC power supply
- Operation: Designed for continuous business use
Deployment Scenarios
- IP surveillance and CCTV networks
- SMB office network access layer
- Wireless AP deployments requiring PoE
- Retail, hotel, and educational networks
Key Features (E-commerce Optimized)
- 16 PoE/PoE+ Gigabit ports with 200W total power budget
- 4 additional non-PoE Gigabit ports for flexible connectivity
- Cloud-managed for easy remote setup, monitoring, and control
- Uplink options with 2 Gigabit SFP ports for fiber or backbone connections
- Smart Layer 2 features: VLAN, QoS, link aggregation, and port isolation
- Durable steel desktop chassis with active cooling for reliable performance
Meta Description
Ruijie Reyee RG-ES220GS-P is a 20-port Gigabit smart cloud managed PoE switch with 16 PoE/PoE+ ports, 200W power budget, and SFP uplinks, ideal for SMB networks, wireless APs, and IP surveillance deployments.
