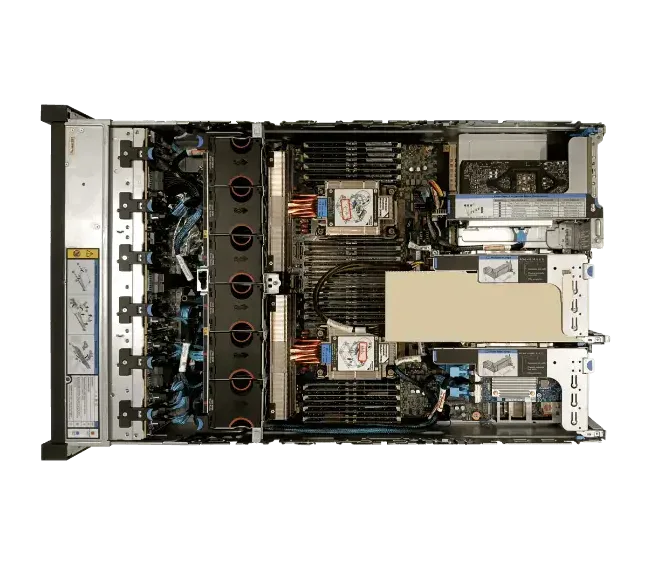

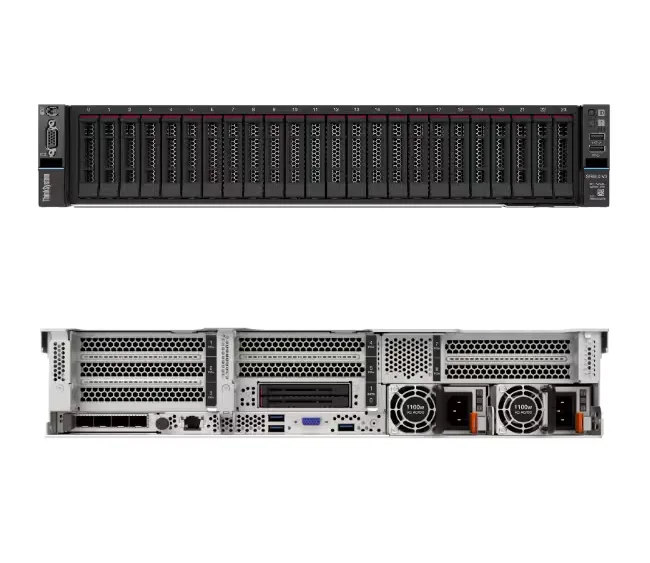

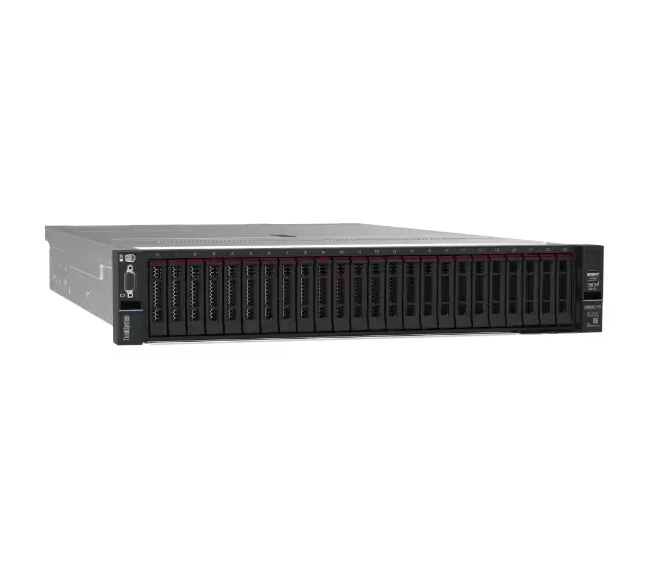

The Lenovo ThinkSystem SR650 V3 Rack Server is a 2U rack server engineered for performance, scalability, and versatility. It supports the latest Intel Xeon Scalable processors, DDR5 memory, and flexible storage options, making it ideal for virtualization, databases, analytics, and enterprise applications. The following are detailed specifications for each part number.
Model: 7D76A05VEA – SR650 V3 Xeon Silver 4509Y
- Processor: Intel Xeon Silver 4509Y
- 8 Cores, 16 Threads
- Base Frequency: 2.6GHz
- Cache: 22.5MB
- TDP: 125W
- Memory: 32GB DDR5 (1x32GB, 4800MHz, 1Rx4 RDIMM)
- Storage: 8x SAS/SATA drive bays
- RAID Controller: ThinkSystem 9350-8i
- Power: 1x 1100W Titanium PSU
- Cooling: 5x Standard Fans
- Management: XCC2 Platinum
- Rails: Toolless V2
Model: 7D76A065EA – SR650 V3 Xeon Silver 4510
- Processor: Intel Xeon Silver 4510
- 12 Cores, 24 Threads
- Base Frequency: 2.4GHz
- Cache: 30MB
- TDP: 150W
- Memory: 32GB DDR5 (1x32GB, 4800MHz, 1Rx4 RDIMM)
- Storage: 8x SAS/SATA drive bays
- RAID Controller: ThinkSystem 9350-8i
- Power: 1x 1100W Titanium PSU
- Cooling: 5x Standard Fans
- Management: XCC2 Platinum
- Rails: Toolless V2
Model: 7D76A05ZEA – SR650 V3 Xeon Silver 4514Y
- Processor: Intel Xeon Silver 4514Y
- 16 Cores, 32 Threads
- Base Frequency: 2.0GHz
- Cache: 30MB
- TDP: 150W
- Memory: 32GB DDR5 (1x32GB, 5600MHz, 1Rx4 RDIMM)
- Storage: 8x SAS/SATA drive bays
- RAID Controller: ThinkSystem 9350-8i
- Power: 1x 1100W Titanium PSU
- Cooling: 5x Standard Fans
- Management: XCC2 Platinum
- Rails: Toolless V2
Model: 7D76A04DEA – SR650 V3 Xeon Gold 6426Y
- Processor: Intel Xeon Gold 6426Y
- 16 Cores, 32 Threads
- Base Frequency: 2.5GHz
- Cache: 37.5MB
- TDP: 185W
- Memory: 32GB DDR5 (1x32GB, 4800MHz, 1Rx4 RDIMM)
- Storage: No backplane (storage not configured)
- RAID Controller: None
- Power: 1x 1100W Titanium PSU
- Cooling: 5x Standard Fans
- Management: XCC Platinum (not XCC2)
- Rails: Toolless V2
Key Differences at a Glance
- Cores/Performance:
- Silver 4509Y = 8 cores @ 2.6GHz (entry-level)
- Silver 4510 = 12 cores @ 2.4GHz (balanced performance)
- Silver 4514Y = 16 cores @ 2.0GHz (higher density, lower frequency)
- Gold 6426Y = 16 cores @ 2.5GHz (higher cache and performance than Silver)
- Memory Speed: 4514Y runs DDR5 at 5600MHz vs. others at 4800MHz
- Storage: Gold 6426Y config comes without backplane and RAID, while others support 8 SAS/SATA with RAID 9350-8i
- Management: Gold model uses XCC Platinum, others upgraded to XCC2 Platinum
Key Features
- Flexible CPU options from 8 to 16 cores, Silver or Gold
- DDR5 RDIMM support up to 5600MHz for better performance
- High-efficiency Titanium PSU for energy savings
- RAID-enabled models with up to 8 SAS/SATA drive bays
- Toolless rail design for simplified rack deployment
- Advanced system management via Lenovo XClarity Controller
Meta Description
Explore Lenovo ThinkSystem SR650 V3 rack server configurations: Xeon Silver 4509Y, 4510, 4514Y, and Xeon Gold 6426Y. Supports DDR5 memory, 8 SAS/SATA bays with RAID (select models), 1100W Titanium PSU, and XCC Platinum management in a 2U design.
